FMI-B50 Digital Force Gauge for Force vs. Displacement Measuring - HR - USB

High-end precision digital force gauge, for force and compression measurement up to 5000 N, with a resolution from 0.001 N. Transfer measurements easily in real time with optional motor controls and software force/length graphs.
Alluris instrument picture

Our FMI-B50 range of digital force gauges are made for precise force measurements in materials testing and quality control. The gauge sensor modules are integrated in a robust die cast aluminium housing and directly connected to each other for precision force measurement.

Upgrade the FMI-B50 to a comprehensive measurement system, using a laser distance sensor and either a manual or motor-driven test stands, for an even wider range of push and pull testing applications.

Force is applied and measured through a gauge rod with an M6 thread for compatibility with a extensive range of tensile and compression fixtures. When used with a laser distance sensor, non-contact measurement is also captured from the test object or a reference mark.

Talk to your Alluris representative for your country about solutions, pricing and support


Got a question about this solution?
Get in touch and speak to one of our Technical Sales Engineers now...

Speak to an expert

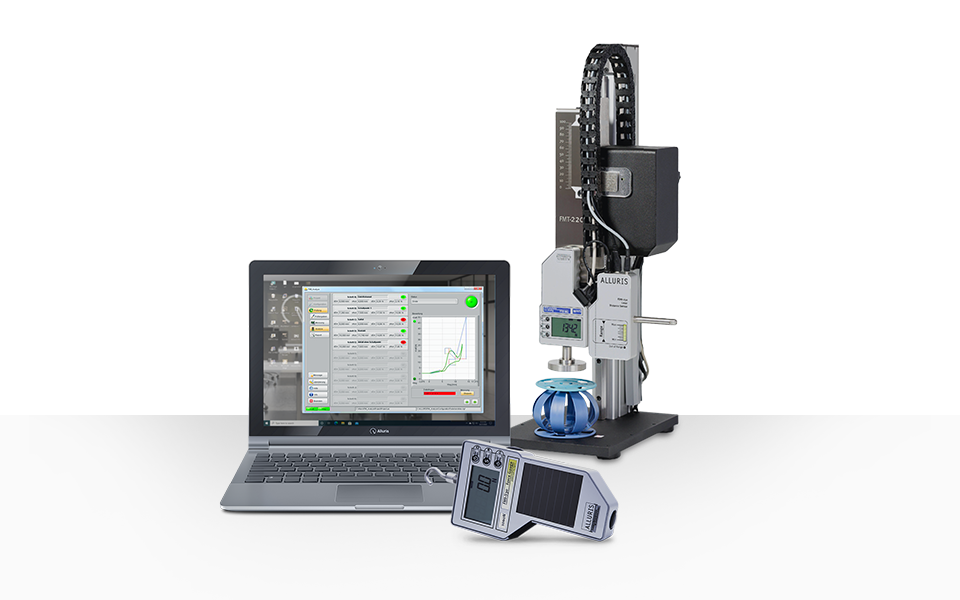

Alluris - FMI-B50 configured with FMT-221 motorised test stand and FMI_Analyze software

FMI_Analyze software

Measurements and results are captured in real time and can be transferred to your computer using our FMI_Analyze software.

FMI_Analyze enables easy visualisation of the test results, with comparative set point limits or graphic parameters such as failure lines and measurement value windows. The software can also control test sequences when your gauge is configured with a motorised test stand (FMT-221/230).

Synchronized force, displacement and time measurement >> combined with optional laser distance sensor

Application as force sensor in test stands >> with rugged aluminium die cast housing, optimized fixing points and autoreverse display

Alluris force and torque testing instruments

Comprehensive test analysis>> software package allows display and evaluation of diagramms, comparison with limits and management of settings

Application as force sensor in test stands >> with rugged aluminium die cast housing, optimized fixing points and autoreverse display

Gallery

Models and specifications

Part: FMI-B50C2

Specifications

Capacity F(nom)*

250 N

Resolution

0,05 N

Accuracy

0,15 % F(nom)

Part: FMI-B50C5

Specifications

Capacity F(nom)*

500 N

Resolution

0,1 N

Accuracy

0,15 % F(nom)

Part: FMI-B50K1

Specifications

Capacity F(nom)*

1000 N

Resolution

0,2 N

Accuracy

0,15 % F(nom)

Part: FMI-B50K2

Specifications

Capacity F(nom)*

2500 N

Resolution

0,5 N

Accuracy

0,15 % F(nom)

Part: FMI-B50K5

Specifications

Capacity F(nom)*

5000 N

Resolution

1 N

Accuracy

0,15 % F(nom)

Part: FMI-B50A5

Specifications

Capacity F(nom)*

5 N

Resolution

0,001 N

Accuracy

0,15 % F(nom)

Part: FMI-B50B1

Specifications

Capacity F(nom)*

10 N

Resolution

0,002 N

Accuracy

0,15 % F(nom)

Part: FMI-B50B5

Specifications

Capacity F(nom)*

50 N

Resolution

0,01 N

Accuracy

0,15 % F(nom)

Part: FMI-B50C1

Specifications

Capacity F(nom)*

100 N

Resolution

0,02 N

Accuracy

0,15 % F(nom)
