FMI-S50 Digital Force Gauge - Solar - HR - USB -TR

High end instrument for push and pull forces up to 5kN, time synchronized force and length measurement with digital force gauge and optional Laser Distance Sensor.
Alluris instrument picture

Digital Force Gauges FMI-S50 series are made for precise force measurements in materials testing and quality control.

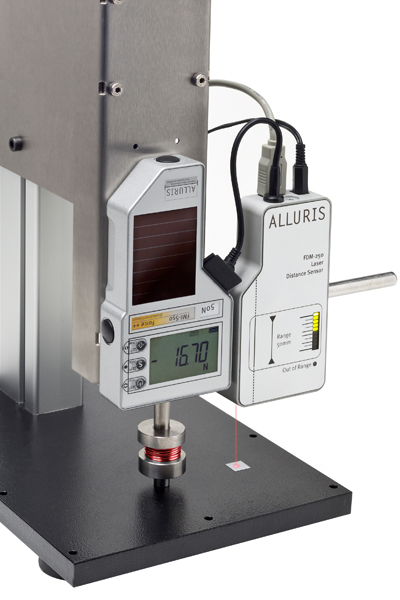

Combined with a laser distance sensor and manual or motor-driven test stands they can be upgraded to a comprehensive measurement system for all push and pull test requirements.

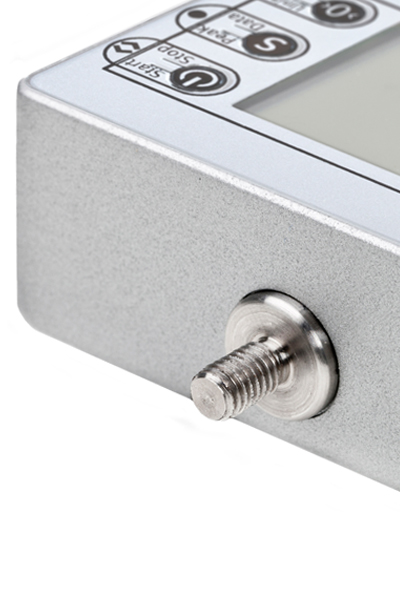

The sensor modules are integrated in robust die cast aluminium housings and directly connected to each other. Force is applied through a gauge rod with M6/M10 thread.

The laser distance sensor allows a non-contact measurement on the test object or on a reference mark. Measurement values are captured in real time and transferred to the PC.

The software FMI_Analyze allows different ways of visualization, both automatic and manual starting and comparison with setpoint limits or graphic parameters (e.g. failure lines or measurement value windows).

Talk to your Alluris representative for your country about solutions, pricing and support


Got a question about this solution?
Get in touch and speak to one of our Technical Sales Engineers now...

Speak to an expert

Comprehensive test analysis software package for recording and extensive evaluation of test results

Application as force sensor in test stands >> with rugged aluminium die cast housing, optimized fixing points and autoreverse display

Alluris force and torque testing instruments

Target-actual comparisons of force-displacement curves with freely definable good / bad ratings

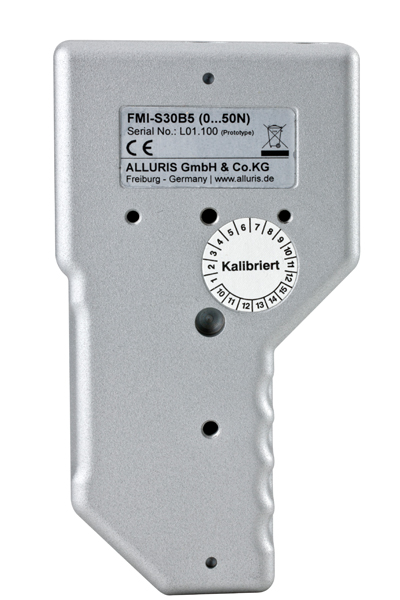

Use as a force sensor in test benches >> robust aluminum housing with bores for centering

Gallery

Models and specifications

Part: FMI-S50K2

Specifications

Capacity F(nom)*

2500 N

Resolution**

0,5 N

Tolerance**

0,15 % F(nom)

Part: FMI-S50K5

Specifications

Capacity F(nom)*

5000 N

Resolution**

1 N

Tolerance**

0,15 % F(nom)

Part: FMI-S50A5

Specifications

Capacity F(nom)*

5 N

Resolution**

0,001 N

Tolerance**

0,15 % F(nom)

Part: FMI-S50B1

Specifications

Capacity F(nom)*

10 N

Resolution**

0,002 N

Tolerance**

0,15 % F(nom)

Part: FMI-S50B5

Specifications

Capacity F(nom)*

50 N

Resolution**

0,01 N

Tolerance**

0,15 % F(nom)

Part: FMI-S50C1

Specifications

Capacity F(nom)*

100 N

Resolution**

0,02 N

Tolerance**

0,15 % F(nom)

Part: FMI-S50C2

Specifications

Capacity F(nom)*

250 N

Resolution**

0,05 N

Tolerance**

0,15 % F(nom)

Part: FMI-S50C5

Specifications

Capacity F(nom)*

500 N

Resolution**

0,1 N

Tolerance**

0,15 % F(nom)

Part: FMI-S50K1

Specifications

Capacity F(nom)*

1000 N

Resolution**

0,2 N

Tolerance**

0,15 % F(nom)
