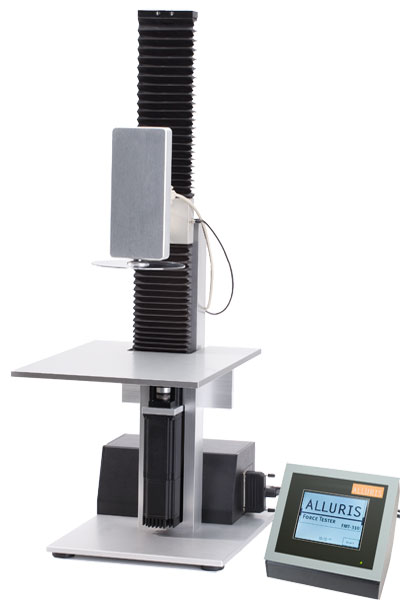

FMT-310
Universal Testing Machine
The rugged, precise linear drive with ball screw gears coupled with a powerful high resolution stepper motor makes the FMT-310 Force Tester suitable for many applications.

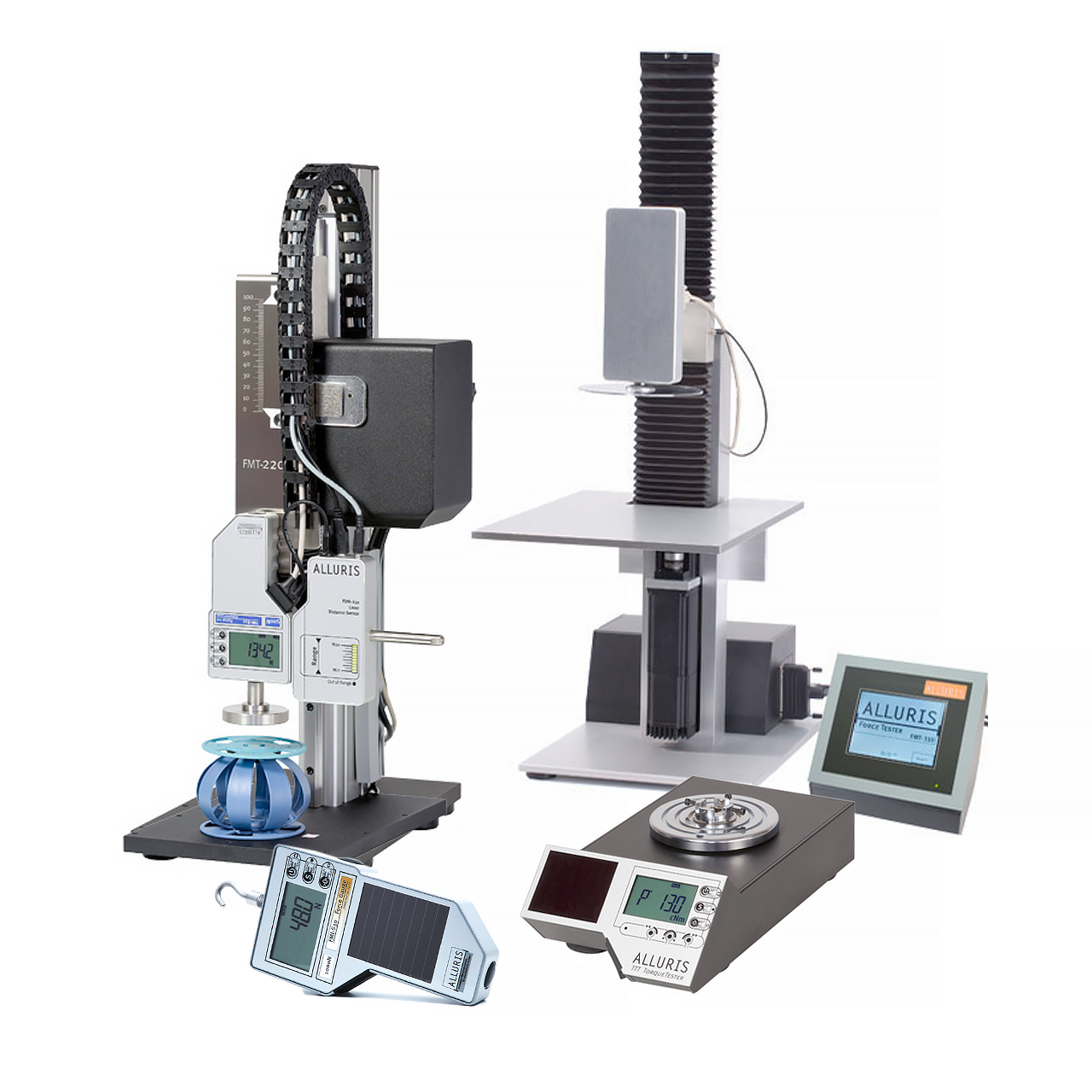

Products
A comprehensive product range of force measurement solutions, from digital force gauges for all kinds of applications, up to sophisticated custom-build test stands and universal testing machines for minute forces.
Alluris also develop torque measurement testers to monitor torque tools and testing in the packaging and food industry.

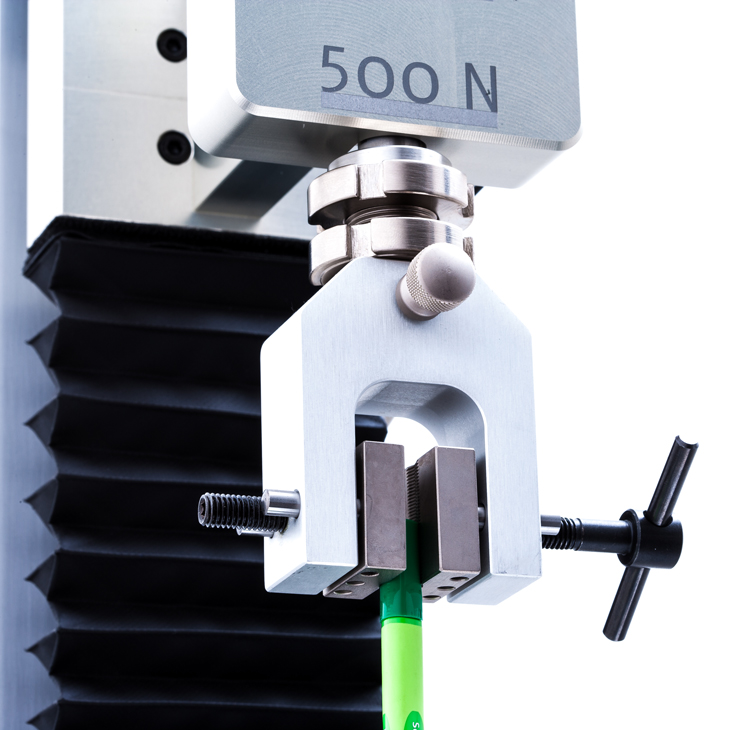

Universal Testing Machines (UTM)
Alluris single- and twin-column universal testing machines (UTMs) are designed for determining the mechanical properties (tensile and compression) of materials, components and assemblies.

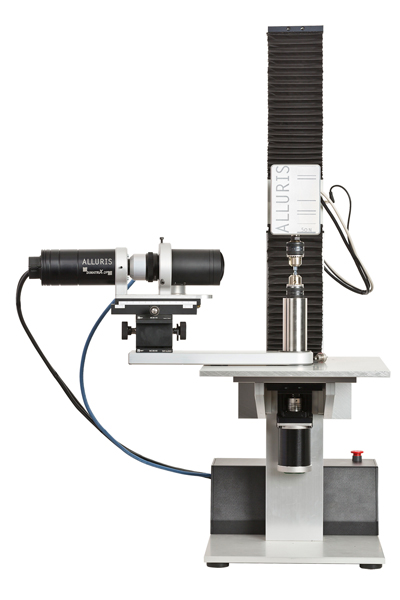

FMT-311
Universal Testing Machine
The rugged, precise linear drive with ball screw gears coupled with a powerful high resolution stepper motor makes the FMT-311 Force Tester suitable for many applications.

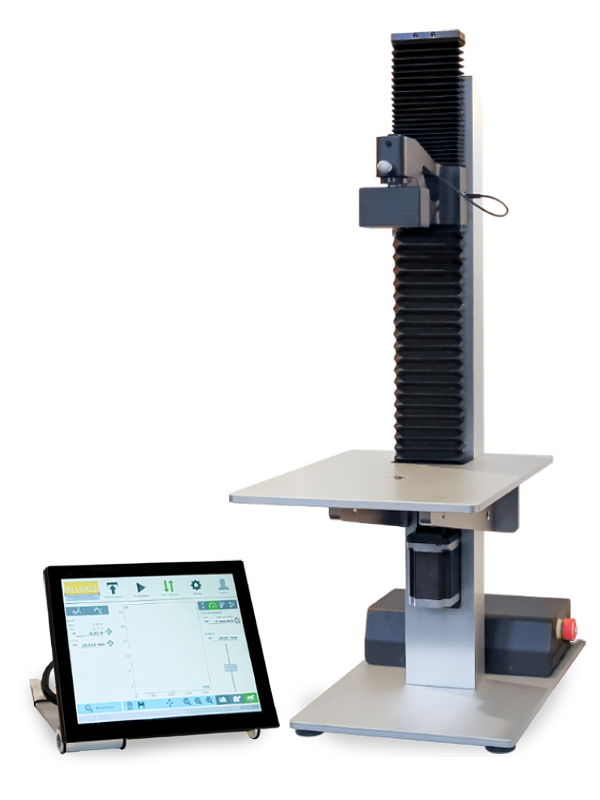

FMT-313
Universal Testing Machine
Our FMT-313 single-column universal testing machine combines performance and accuracy in a compact and rugged bench-top tester. Designed for high-precision tension and compression of loads up to 1,000 N (1 kN).

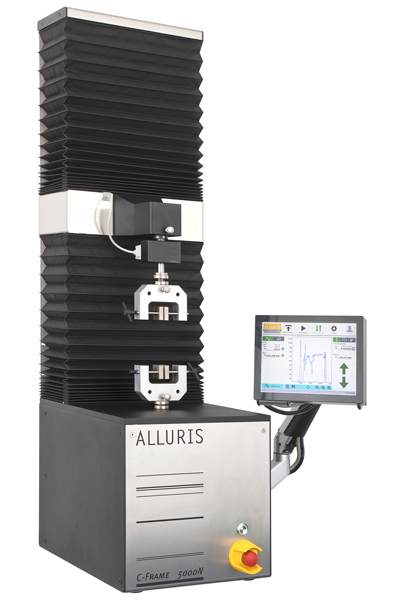

FMT-314
Universal Testing Machine
The FMT-314 iC-Frame is a single-column universal testing machine with high-precision ball screw drive.

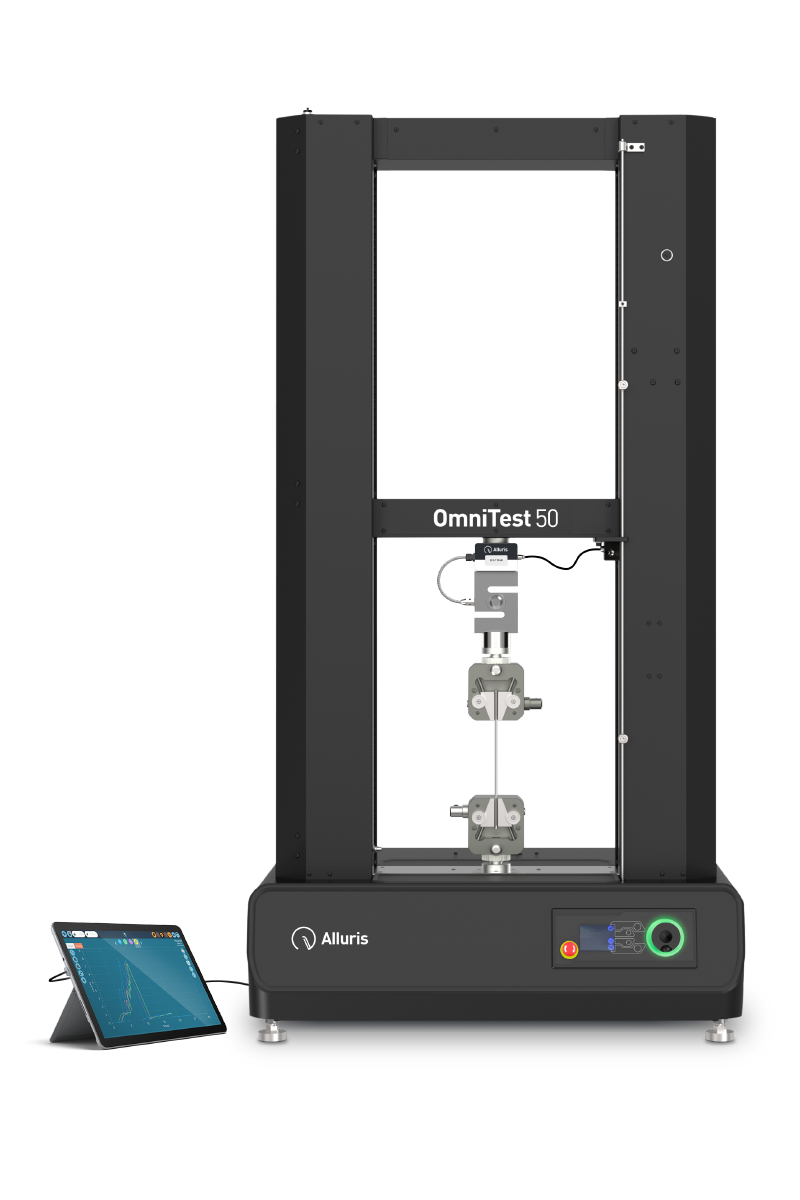

OmniTest
Universal testing machine
A versatile and easy to use materials tester, the twin-column OmniTest is available in 10 kN, 25 kN and 50 kN capacities.
Controlled by VectorPro MT, newly developed testing software designed for use in QC and R&D laboratories.

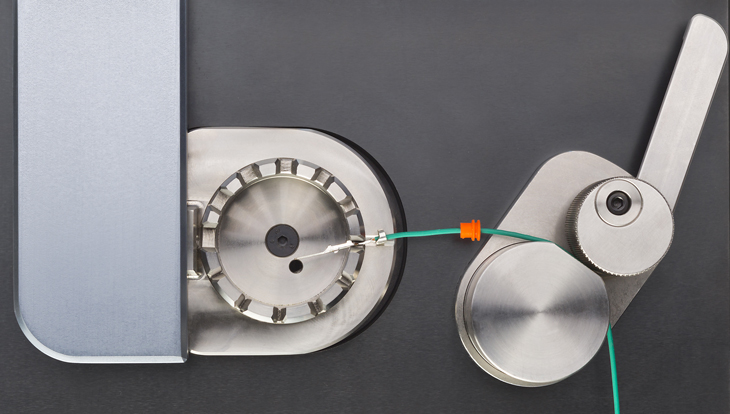

Pull testers
In wire and harness manufacturing for the electrical and electronics industry, the reliability of each electrical connection determines the life span and quality of the final product.

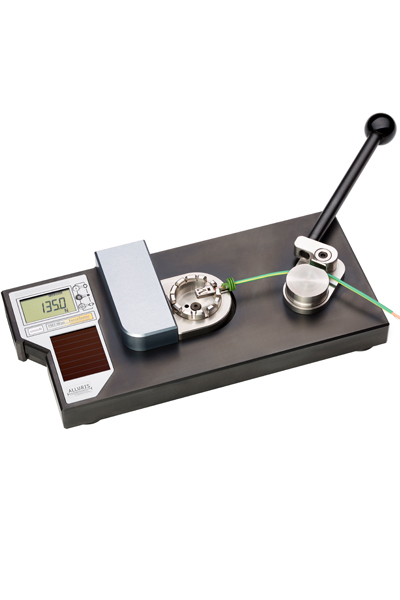

FMT-W30
Manual Pull Tester
Manually operated wire-terminal-tester, solar powered up to 1000 N with USB interface.
Manually operated pull tester, solar powered, for pull forces up to 1000N with USB interface. Standard model for fast and easy testing of wire terminals after crimping or soldering.

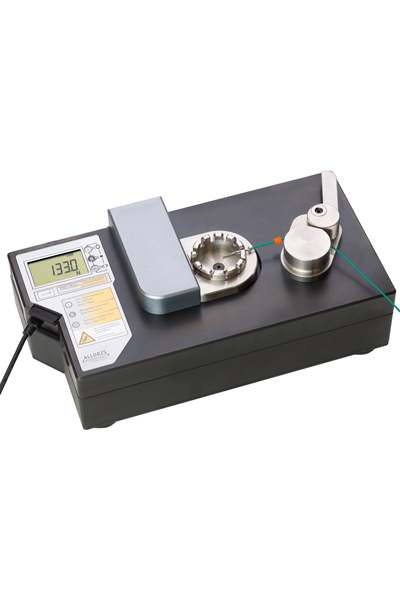

FMT-W40
Motorized Pull Tester
Motorized pull tester up to 1000N with constant speed up to 200 mm/min and USB interface. For wire terminal tests in IATF 16949: 2016 certified companies.
Force gauges
"Made in Germany" stands for a perfect price-performance ratio and the top quality level of all Alluris force gauges.

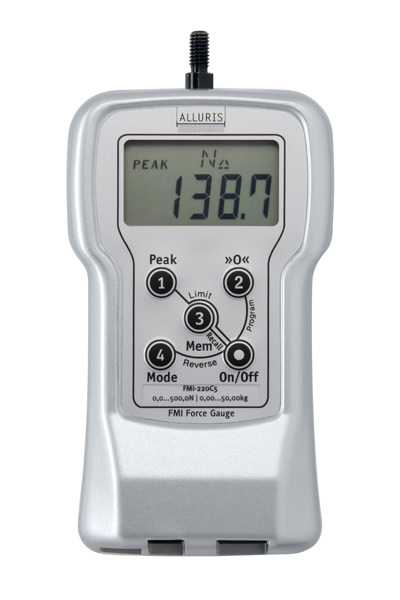

FMI-250
Digital force gauge
FMI-250 series digital force gauge is a high precision instrument with outstanding accuracy of 0.05% for tensile and compression measurement to 500 N, with both analog and digital outputs (Digimatic, RS232C and USB).

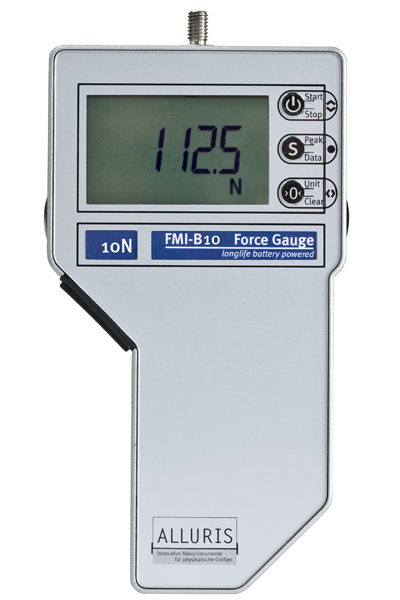

FMI-B10
Digital Force Gauge
Digital force gauge up to 1000N nominal force. Standard instrument for push and pull force, 150h independent operation time with LiPo battery.
FMI-B20
Digital Force Gauge - HR
Digital force gauge up to 5000N for push- and pullforce, allround force gauge with high measureing rate for precise peak value detection at break point. Energy supply with rechargeable LiPo up to 150h operation time.

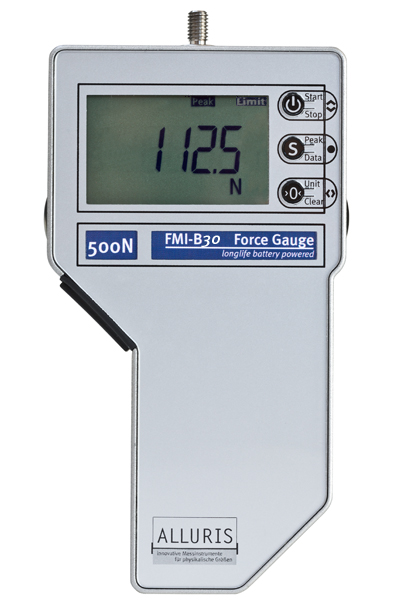

FMI-B30
Digital Force Gauge - HR (USB)
Digital force gauges with 5N to 5000N nominal force and 0,15% accuracy, 150h operation time with rechargeable LiPo battery. Including memory, statistical functions and USB 2.0 interface. Suitable for test stands also.
FMI-B50
Digital Force Gauge for Force vs. Displacement Measuring - HR - USB
High-end precision digital force gauge, for force and compression measurement up to 5000 N, with a resolution from 0.001 N. Transfer measurements easily in real time with optional motor controls and software force/length graphs.

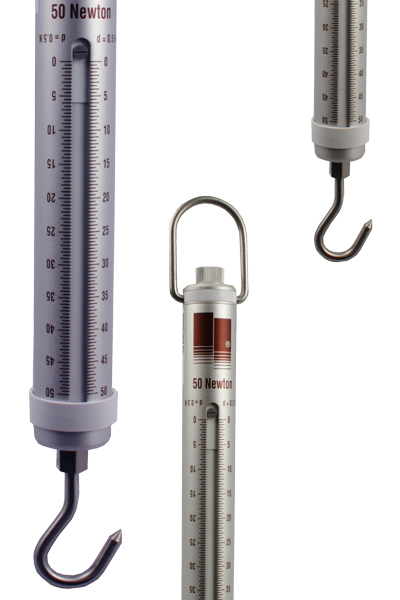

FMI-M10
Mechanical Force Gauge Spring Balance
Spring balance with Newton scale to measure pull force. Simple but precise force meter to measure up to 500N with reasonable reproducibility.

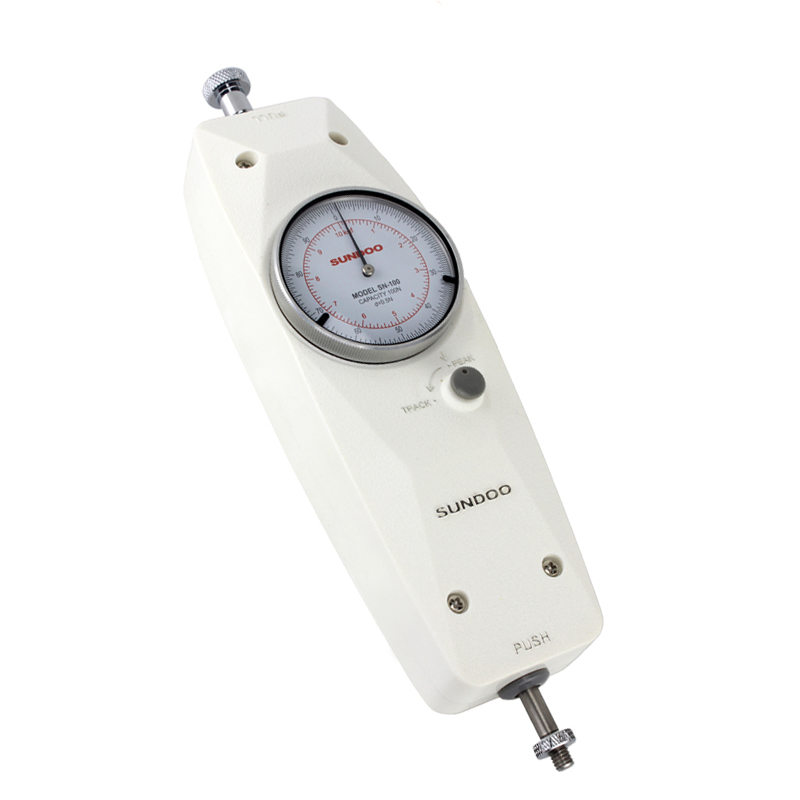

FMI-M20
Mechanical Force Gauge
Mechanical force gauge with mechanical spring and analog scale. Low cost force meter with 500N scaling.

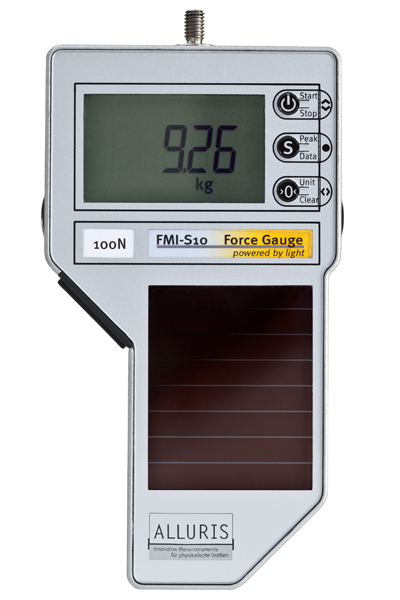

FMI-S10
Digital Force Gauge - Solar
Digital force gauge with 50N to 1000N nominal force, for regular pull and push tests also outdoor use, energy supply from solar cell.
FMI-S20
Digital Force Gauge - Solar - HR
Digital force gauge up to 5 kN for push and pull force, state of the art force gauge with high measuring frequency for reliable peak detection at break. Energy supply by solarcell.

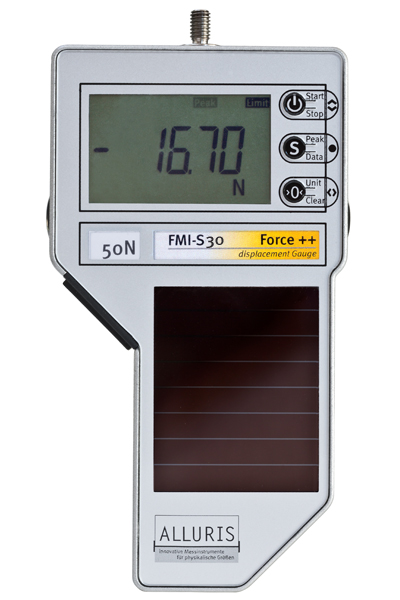

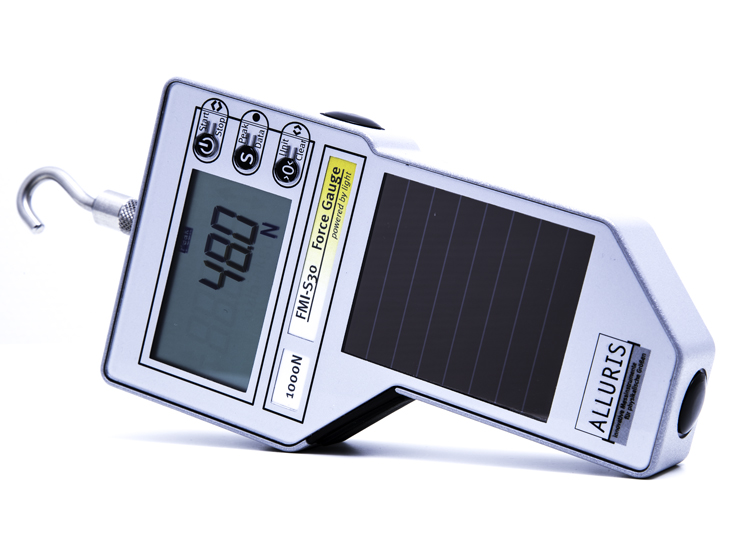

FMI-S30
Digital Force Gauge - Solar - HR - USB
Digital force gauge 5N to 5000N, display resolution from 0.001N for push and pull force with memory and USB 2.0 interface, energy supply with solarcell.
FMI-S50
Digital Force Gauge - Solar - HR - USB -TR
High end instrument for push and pull forces up to 5kN, time synchronized force and length measurement with digital force gauge and optional Laser Distance Sensor.

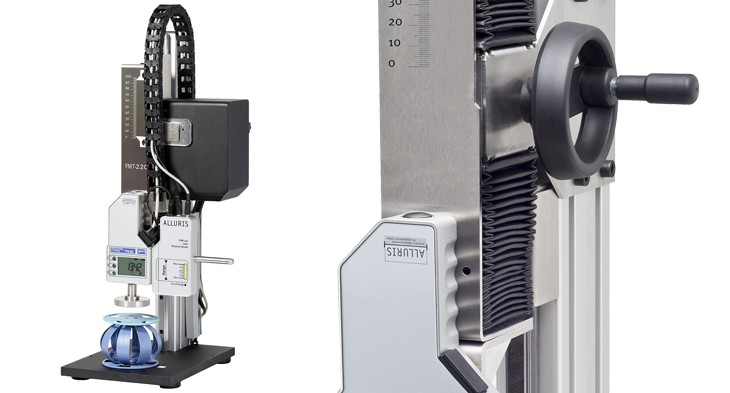

Force test stand
Reproducible measurement results are easier to obtain when the force gauges are mounted on a test stand or special test equipment.

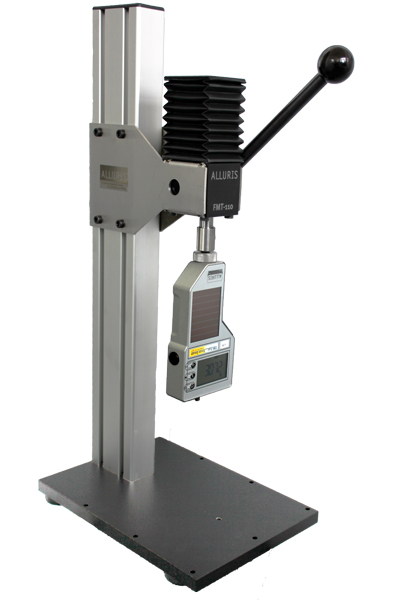

FMT-110
Vertical Test Stand with Hand Lever
Teststand for precise, linear guided movement, to complete a force gauge for compression or break tests.
FMT-210
Vertical Test Stand with Hand Wheel
FMT-210 test stands are hand-operated test aids that are used to carry out linear, vertical lifting movements for tensile or compressive force tests.

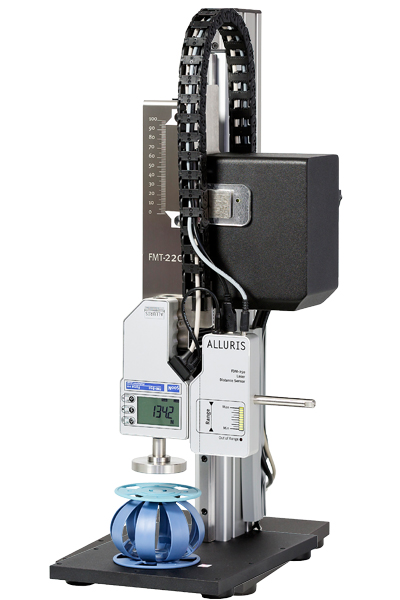

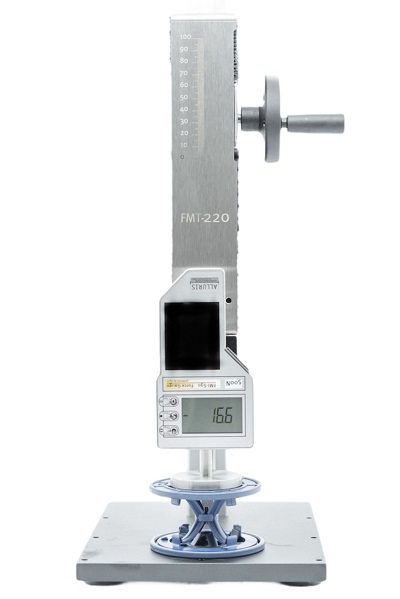

FMT-220
Vertical Test Stand with Hand Wheel
The FMT-220 test stand is a manually operated testing device, for precisely linear guided movement in order to apply force for push and pull tests.
FMT-221
Motor option for Vertical Test Stands (FMT-220)
Motor unit with controller for FMT-220. Drive unit with 2-phase stepper motor, integrated stepper motor control, connection cable for Alluris force gauges.
FMT-230
Motorized Vertical Test Bench
With the motorized test stand FMT-230 linear guided vertical lifting movements for tensile or compressive force tests can be carried out with a constant test speed.

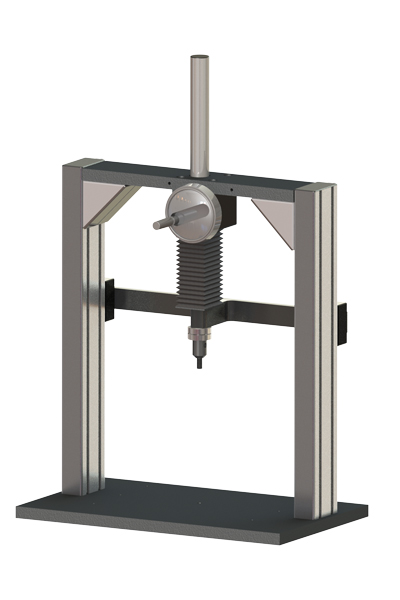

FMT-240
Vertical Test Stand with Hand Wheel
Manual 2-column test stand for the force gauge with 5000N tensile and compressive force. Hand crank and screw jack for power transmission.
Torque testers
Measure the torque needed to open or close screwed-caps, food lids, pharmaceutical and cosmetic packaging, as well as calibration and verification of torque drivers and wrenches according to ISO 6789-1.

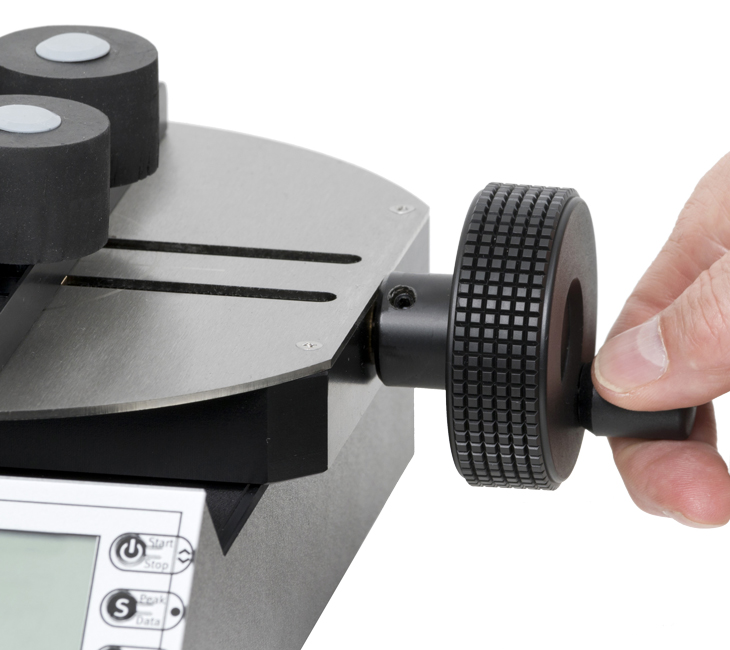

CTT-200
Digital Cap Torque Tester (USB)
Cap torque tester, for screwed closures, and torque depending components with limit monitoring and USB 2.0 interface.
CTT-300
Digital Cap Torque Tester
Cap torque tester with automatic 1st and 2nd peak detection and separate limit monitoring for safety sealed or tamper proof screw caps.
TTT-300
Torque Tool Tester to verify and calibrate, USB
Torque torque tester for torque wrenches, torque screw drivers and electrical or pneumatic driven screw drivers.

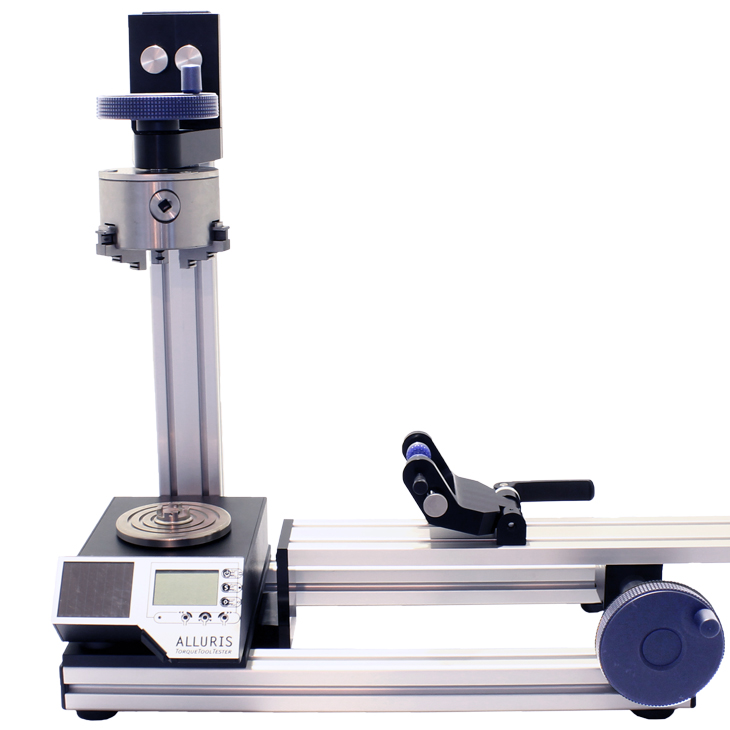

Torque test stands
Reproducible measuring results are achieved more easily with the torque testers mounted to a specific test stand.

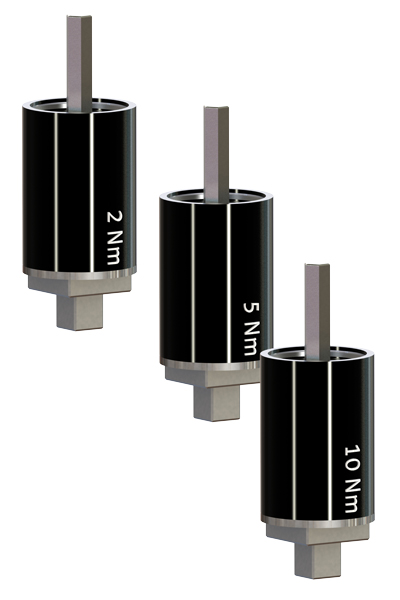

TTT-910
Run down joint simulator
Run down joint simulator as Add-on for ToolTorqueTesters to measure torque of electric or pneumatic powered torque screw drivers (not for impulse or impact tools).

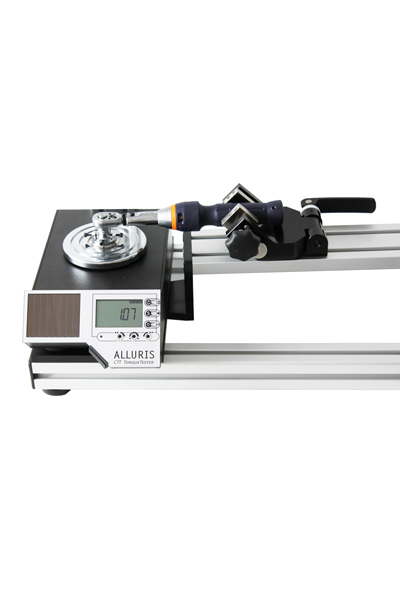

TTT-920
Horizontal test stand for torque wrenches
Horizontal test stand to verify and calibrate torque wrenches together with Tool Torque Tester TTT-300.

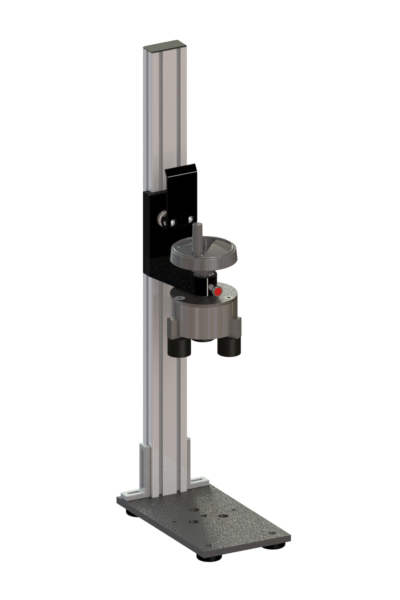

TTT-921
Vertical test stand for torque screw drivers
Vertical test stand to verify and calibrate torque screw drivers together with Tool Torque Tester TTT-300.

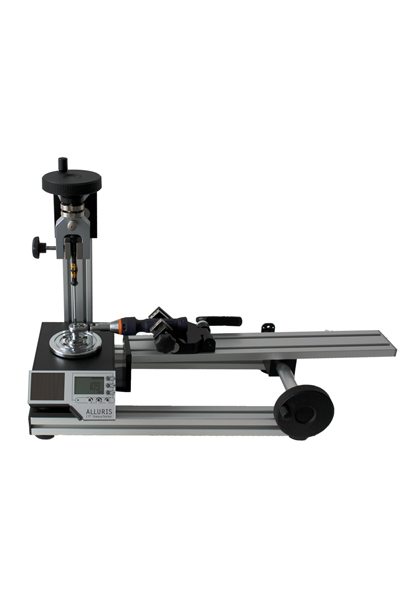

TTT-922
Test stand for torque wrenches and screw drivers
Test stand to verify and calibrate torque tools, screw drivers and torque wrenches together with Tool Torque Tester TTT-300.

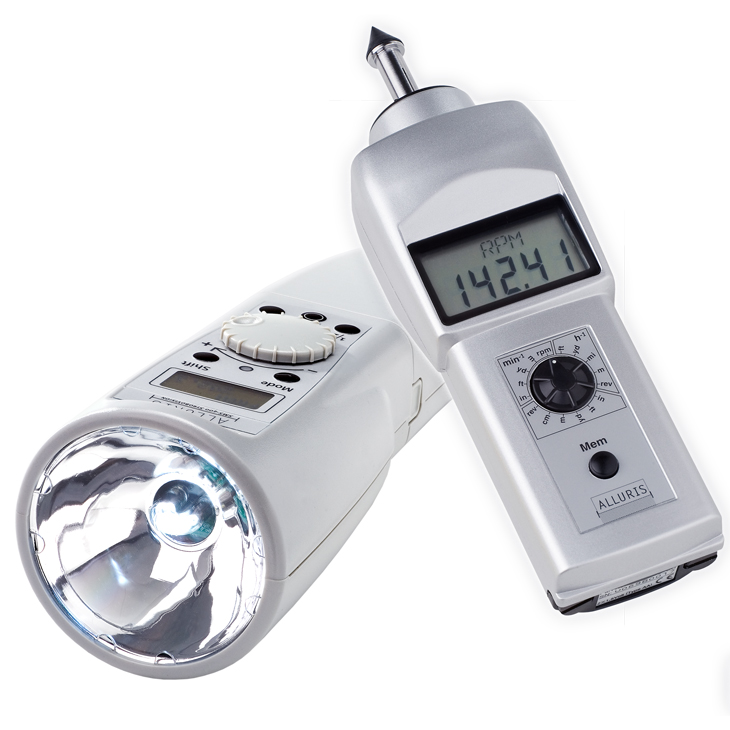

Tachometer and stroboscopes
A complementary range of Alluris handheld tachometers and stroboscopes for observation and measurement.

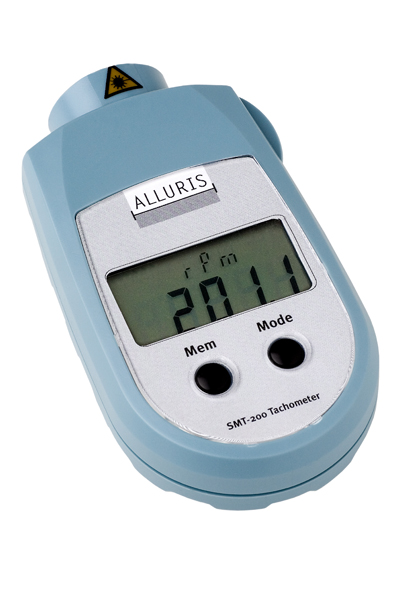

SMT-200
Contact and laser tachometer
Series SMT-200 tachometers are small, handy and ergonomically well designed precision instruments to measure revolution, surface speed and distance (length).

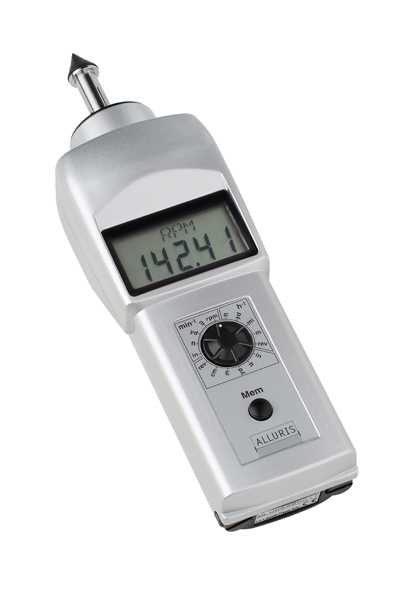

SMT-500
Contact and laser tachometer
Series SMT-500 tachometers are robust precision instruments designed for frequent use for measuring revolution, surface speed and distance (length). The large LC-Display allows an excellent readability

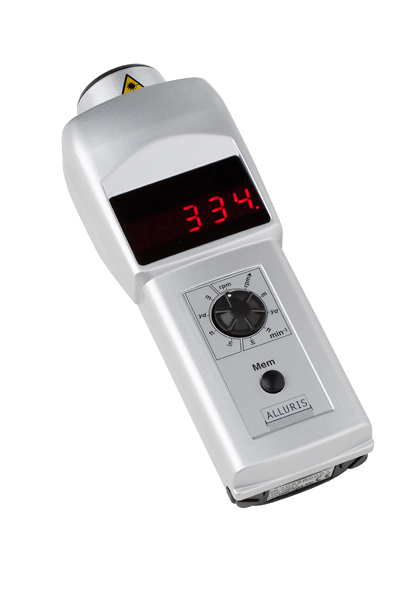

SMT-510
Contact and laser tachometer
Series SMT-510 tachometers are robust precision instruments designed for frequent use for measuring revolution, surface speed and distance (length).
Software
Most Alluris force gauges, all of our torque testers and all motorized test stands are equipped with either USB 2.0 or RS232 data interfaces.
Our software packages can be used to transfer or stream testing data to your computer for analysis.
FMI-972
FMI_Connect for FMI, FMI-S and FMI-B force gauges
FMI_Connect is an optional software tool for transferring data from Alluris® digital force gauges, including the FMI, FMI-S and FMI-B series gauges.
FMI-975
FMI_Analyze for force gauges and FMT-220 series test stands
FMI_Analyze software enables real-time capture and analysis of test measurement data (eg force/distance/time) for Alluris® force gauges, as well as remote control and setting of test sequences for motorized test stands (FMT-220 series).
FMI-977
COM-Bridge for force gauge data transfer via USB
Direct data transfer from your Alluris® force gauge via USB to your applications with customisable triggers...
FMT-811
Software/OS for Universal Testing Machines
Software module and operating system for manual and automatic test procedures on Alluris® Universal Testing Machines.

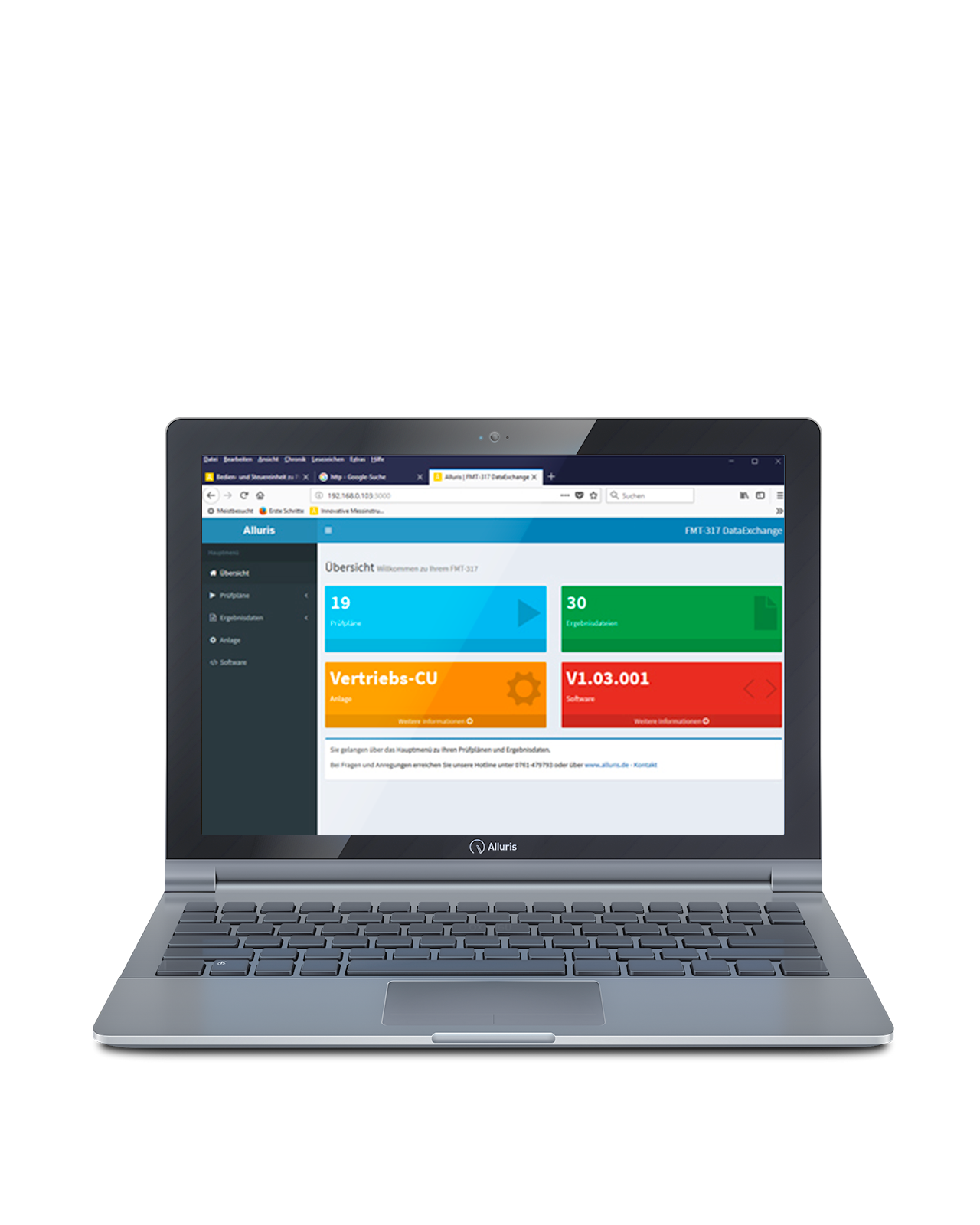

FMT-815
Cloud-based test plan editor
Our cloud-based test plan editor enables you to create, edit and administer test sequences online for your Alluris® Universal Testing Machine. FMT_EasyEdit is available 24/7 via our Customer Portal.
FMT-816
FMT-W_Connect software module for pull test data
FMT-W_Connect software module for recording and evaluation of pull test data according to EN-/IEC-/UL-/SAE- and NASA test standards.
FMT-972
FMT_Connect software module for FMT-310CU
Software module for reading force/displacement from FMT-310CU (v4.23+ required).
TTT-930
TTT_Certify software for ISO 17025 conformant calibration certificates
Software application for generating calibration certificates, for torque wrenches and torque screwdrivers, classification according to ISO 6789.
